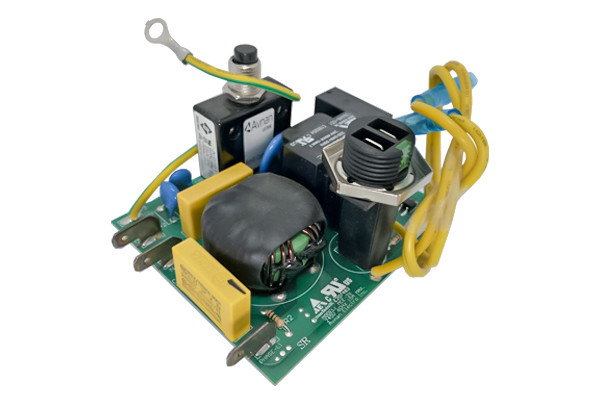

Vacuum Motor Circuit Board Single Motor 7 amp 240v

The Hide-A-Hose MD Vacuum Motor Circuit Board Single Motor 7 amp 240v is a replacement control module for compatible 220–240 volt single-motor central vacuum systems drawing under 8 amps. Built In Vacuum says it replaces separate relay/transformer/breaker components with a single board and includes the main electrical parts needed for installation. The module is designed with threaded reset and low-voltage stems that mount through the vacuum exterior, and the mounting nuts are included.

Key Features:

• For single-motor 240V central vacuums drawing under 8 amps.
• Includes relay, transformer, mini breaker, ground, and two pairs of low-voltage leads.
• Designed as a single control board replacement instead of replacing separate electrical components.
• Reset button and low-voltage stems are threaded to mount through the vacuum exterior.
• External mounting nuts are included.
• Circuit board control module is 2 inches high from the board to the top of the reset button.
• Built In Vacuum notes this board does not work on all vacuums.
• Quarter-inch female spade terminals are not included.

Specifications:

• Brand: Hide-A-Hose / MD. This is the site brand context for the listed part family.
• Product Name: Vacuum Motor Circuit Board Single Motor 7 amp 240v.
• SKU / Part Number: 236S. This SKU is the catalog identifier you supplied; the live Built In Vacuum search results confirm the product but did not expose the SKU in the snippet text I could access.
• Product Type: Central vacuum circuit board / control module.
• Voltage: 220–240V.
• Motor Configuration: Single motor.
• Max Motor Load: Under 8 amps.
• Included Components: relay, transformer, mini breaker, ground, two pairs of low-voltage leads, mounting nuts.
• Module Height: 2 in. from the board to the top of the reset button.

Compatible With:

• AirMaster
• AirVac
• AstroVac
• CanaVac
• Central Vac Int.
• DuoVac
• Dust Care
• EasyFlo
• Filtex
• Flo-Master
• Frigidaire
• M & S
• Modern Day
• SilentMaster
• Smart
• Star
• Vacuflo
• Vacumaid
•
