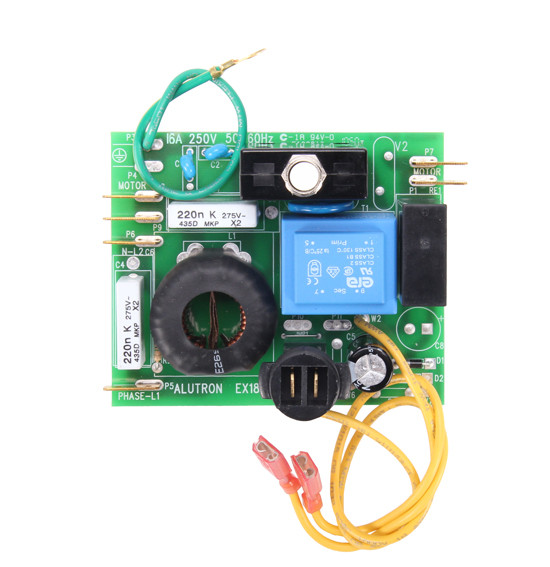

Vacuum Motor Circuit Board Dual Motor 12 amp 240v

The Hide-A-Hose MD Vacuum Motor Circuit Board Dual Motor 12 amp 240v is a replacement control module for compatible 220–240 volt dual-motor central vacuum systems. Built In Vacuum says it contains the relay, transformer, mini breaker, and two pairs of low-voltage leads in one board assembly, making it a practical replacement for failed vacuum electrical controls. The board is designed with threaded reset buttons and a low-voltage stem that mount through the vacuum unit’s corresponding holes.

Key Features:

• For dual-motor 240V central vacuum systems.
• Includes relay, transformer, mini breaker, and two pairs of low-voltage leads.
• Control module is 2 inches high from the board to the top of the reset button.
• Reset buttons and low-voltage stem are threaded to attach through the vacuum unit’s matching holes.
• The two power-cord lines can go on either input terminal because there is no neutral.
• Built In Vacuum explicitly notes that the back of the board says 120 volt, but it is not.
• Used as a replacement in some SilentMaster, MD, and FloMaster systems; Built In Vacuum notes those brands started using boards in August 2004.
• Built In Vacuum says this board does not work on all vacuums and recommends checking brand-specific Q&A.

Specifications:

• Brand: Hide-A-Hose / MD.
• Product Name: Vacuum Motor Circuit Board Dual Motor 12 amp 240v.
• SKU / Part Number: 236M.
• Product Type: Central vacuum circuit board / control module.
• Voltage: 240V.
• Motor Configuration: Dual motor.
• Amp Rating: 12 amp. This comes from the product title you provided; the fetched page confirms the exact product identity but the visible lines do not separately restate the amp rating beyond the title.
• Included Components: relay, transformer, mini breaker, two pairs of low-voltage leads.
• Module Height: 2 in. from board to top of reset button.
• Wiring Note: No neutral; either power line may go to either input terminal.
• Compatibility Note: SilentMaster, MD, FloMaster started using boards 08/04.

Compatible With:

• AirMaster
• AirVac
• AstroVac
• Beam
• Filtex
• Flo-Master
• Modern Day
• SilentMaster
• Westinghouse
•
