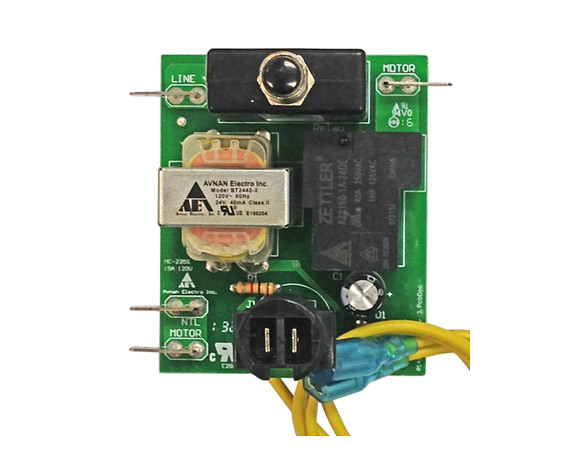

Vacuum Motor Circuit Board Single Motor 18amp 120v

The Hide-A-Hose MD Vacuum Motor Circuit Board Single Motor 18amp 120v is a replacement control module for compatible 110–120 volt single-motor central vacuum units drawing up to 18 amps. Built In Vacuum says it includes the main relay, transformer, mini breaker, and two pairs of low-voltage leads, making it a practical replacement when a central vacuum’s control board has failed. The board is designed for exterior-mounted reset and low-voltage stems, with mounting nuts included.

Key Features:

• For single-motor 110–120V central vacuums up to 18 amps.
• Includes relay, transformer, and one 18-amp mini breaker.
• Includes two pairs of low-voltage leads.
• Control module is 2 inches high from the board to the top of the reset button.
• Reset button and low-voltage stems are threaded to mount through the vacuum exterior.
• External mounting nuts are included.
• Compatible with many popular brands including AirMaster, Modern Day, SilentMaster, Flo-Master, and Beam.
• Built In Vacuum notes this board does not work on all vacuums.
• Quarter-inch female spade terminals are not included.

Specifications:

• Brand: Hide-A-Hose / MD.
• Product Name: Vacuum Motor Circuit Board Single Motor 18amp 120v.
• SKU / Part Number: 235S18.
• Product Type: Central vacuum circuit board / control module.
• Voltage: 110–120V.
• Motor Configuration: Single motor.
• Max Motor Load: 18 amps.
• Included Components: relay, transformer, one 18-amp mini breaker, two pairs of low-voltage leads, mounting nuts.
• Module Height: 2 in. from board to top of reset button.

Compatible With:

• AirMaster
• Beam
• Flo-Master
• Modern Day
• SilentMaster
• •
