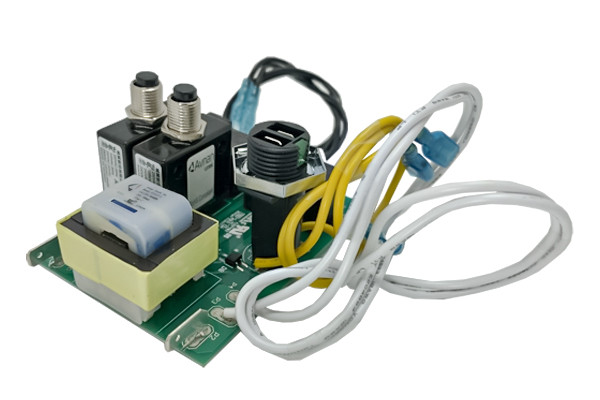

Vacuum Motor Circuit Board Dual Motor 15 amp 120v

The Hide-A-Hose MD Vacuum Motor Circuit Board Dual Motor 15 amp 120v is a replacement control module for compatible 110–120 volt dual-motor central vacuum systems drawing under 16 amps. Built In Vacuum says it combines the relay, transformer, breakers, and low-voltage connections into one board, making it a practical replacement when the original electrical controls fail. The module is designed with threaded reset buttons and low-voltage stems that mount through the vacuum exterior, and the mounting nuts are included.

Key Features:

• For dual-motor 110–120V central vacuums drawing under 16 amps.
• Includes relay, transformer, two mini breakers, and two pairs of low-voltage leads.
• Built In Vacuum’s product page specifies the breakers are two 10-amp mini breakers.
• Reset buttons and low-voltage stems are threaded to mount through the vacuum exterior.
• External mounting nuts are included.
• Circuit board control module is 2 inches high from the board to the top of the reset button.
• Compatible with many brands including Modern Day, SilentMaster, Flo-Master, Nutone, and Eureka, plus additional brands listed on the product page.
• Built In Vacuum notes this board does not work on all vacuums.
• Quarter-inch male or female spade terminals are not included.

Specifications:

• Brand: Hide-A-Hose / MD.
• Product Name: Vacuum Motor Circuit Board Dual Motor 15 amp 120v.
• SKU / Part Number: 235M.
• Product Type: Central vacuum circuit board / control module.
• Voltage: 110–120V.
• Motor Configuration: Dual motor.
• Max Motor Load: Under 16 amps.
• Included Components: relay, transformer, two 10-amp mini breakers, two pairs of low-voltage leads, mounting nuts.
• Module Height: 2 in. from the board to the top of the reset button.
• Compatible Brands Listed: Modern Day, SilentMaster, Flo-Master, Nutone, Eureka, Air-Flo, AirVac, AstroVac, Budd, Dust Care, EasyFlo, Fasco, Filtex, Husky, Pullman, Sequoia, Star.

Compatible With:

• Air-Flo
• AirVac
• AstroVac
• Budd
• Dust Care
• EasyFlo
• Eureka
• Fasco
• Filtex
• Flo-Master
• Husky
• Modern Day
• Nutone
• Pullman
• Sequoia
• SilentMaster
• Star
•
