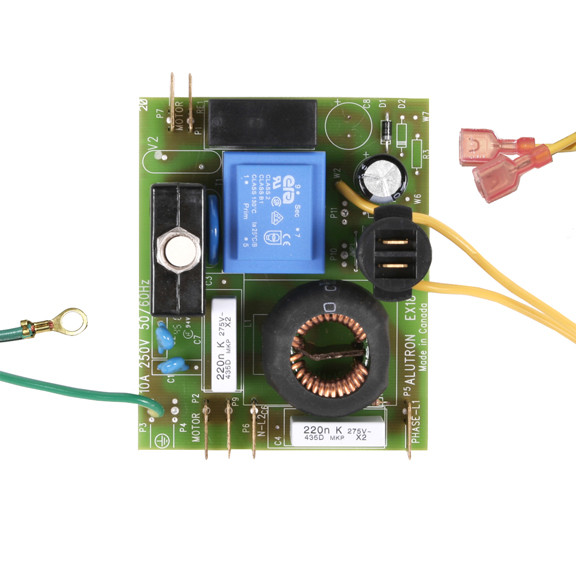

Vacuum Motor Circuit Board Dual Motor 18 amp 240v

The Hide-A-Hose MD Vacuum Motor Circuit Board Dual Motor 18 amp 240v is a replacement control module for compatible 220–240 volt dual-motor central vacuum systems. Built In Vacuum says it combines the relay, transformer, breaker, ground, and low-voltage connections into one board, making it a practical replacement when the original electrical controls fail. The board is designed with threaded reset buttons and low-voltage stems that mount through the vacuum exterior, and mounting nuts are included.

Key Features:

• For dual-motor 240V central vacuum systems.
• Includes relay, transformer, mini breaker, ground, and two pairs of low-voltage leads.
• Control module is 2 inches high from the board to the top of the reset button.
• Reset buttons and low-voltage stems are threaded to attach through openings in the vacuum exterior.
• External mounting nuts are included.
• Built In Vacuum notes the back of the board says 120 volt, but it is 240 volt.
• Compatible with many popular brands including AirMaster, Modern Day, SilentMaster, Flo-Master, Nutone, and Vacuflo.
• Built In Vacuum says this board does not work on all vacuums.
• Quarter-inch female spade terminals are not included.

Specifications:

• Brand: Hide-A-Hose / MD.
• Product Name: Vacuum Motor Circuit Board Dual Motor 18 amp 240v.
• SKU / Part Number: 236L.
• Older Part Number Replaced: 236LX.
• Product Type: Central vacuum circuit board / control module.
• Voltage: 220–240V.
• Motor Configuration: Dual motor.
• Amp Rating: The product title says 18 amp, but Built In Vacuum’s replacement-electrical pages describe the application as dual motor, 240 volt, 15 amps. I would preserve the official product title and note the application wording in fitment notes.
• Included Components: relay, transformer, mini breaker, ground, two pairs of low-voltage leads, mounting nuts.
• Module Height: 2 in. from the board to the top of the reset button.
• Compatible Brands Listed: AirMaster, Modern Day, SilentMaster, Flo-Master, Nutone, Vacuflo.

Compatible With:

• AirMaster
• AirVac
• Filtex
• Flo-Master
• Modern Day
• Nutone
• SilentMaster
• Vacuflo
•
