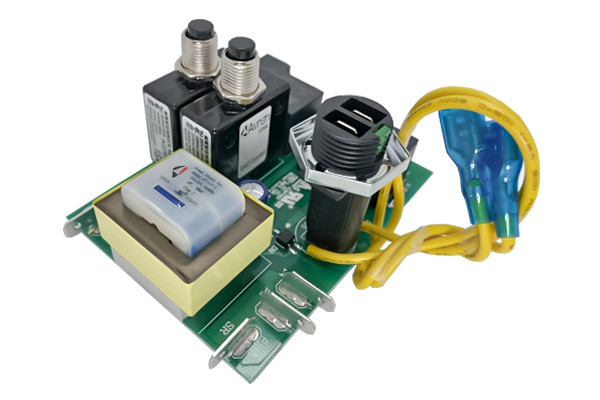

Vacuum Motor Circuit Board Dual Motor 28 amp 120v

The Hide-A-Hose MD Vacuum Motor Circuit Board Dual Motor 28 amp 120v is a replacement control module for compatible 110–120 volt dual-motor central vacuum systems. Built In Vacuum says it combines the relay, transformer, breakers, and low-voltage connections into a single board, making it a practical replacement when the original electrical controls fail. The module is designed with threaded reset buttons and low-voltage stems that mount through the vacuum exterior, and the mounting nuts are included.

Key Features:

• For dual-motor 110–120V central vacuums.
• Built In Vacuum’s electrical category describes it for dual motor, 110 volt, 30 amps.
• Includes relay, transformer, two 18-amp mini breakers, and two pairs of low-voltage leads.
• Reset buttons and low-voltage stems are threaded to mount through the vacuum exterior.
• External mounting nuts are included.
• Circuit board control module is 2 inches high from the board to the top of the reset button.
• Compatible with many popular brands including AirMaster, Modern Day, SilentMaster, and Vacuflo.
• Built In Vacuum notes this board does not work on all vacuums.
• Quarter-inch female spade terminals are not included.

Specifications:

• Brand: Hide-A-Hose / MD.
• Product Name: Vacuum Motor Circuit Board Dual Motor 28 amp 120v.
• SKU / Part Number: 235L. This SKU is the catalog identifier you supplied; the live source I found confirms the product but does not visibly publish that SKU in the snippet returned.
• Product Type: Central vacuum circuit board / control module.
• Voltage: 110–120V.
• Motor Configuration: Dual motor.
• Amp Rating: 28 amp in the product title, while Built In Vacuum’s electrical listings describe the application as dual motor, 110 volt, 30 amps. I would treat that as a naming/category mismatch worth noting in your catalog.
• Included Components: relay, transformer, two 18-amp mini breakers, two pairs of low-voltage leads, mounting nuts.
• Module Height: 2 in. from the board to the top of the reset button.
• Compatible Brands Listed: AirMaster, Modern Day, SilentMaster, Vacuflo.

Compatible With:

• AirMaster
• AstroVac
• Budd
• CentraClean
• D & R
• EasyFlo
• Filtex
• Modern Day
• Omar's
• Sequoia
• SilentMaster
• Vacuflo
• Vacumaid
•
