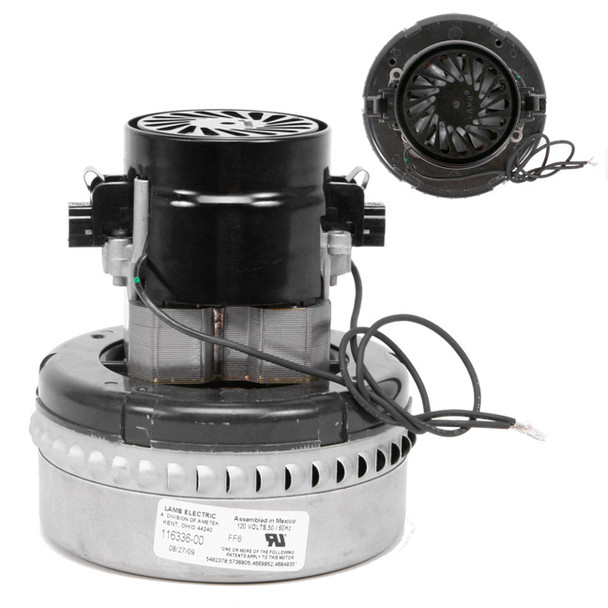

116336 Lamb Vacuum Motor

The Hide-A-Hose MD 116336 Lamb Vacuum Motor is a brand-new original Lamb Ametek replacement motor used in many compatible central vacuum brands and models. Built In Vacuum notes that, as of late 2016, this motor was upgraded to 116336-01, meaning it uses a bearing instead of a bushing on the cooling fan.

Key Features:

• Genuine Lamb Ametek 116336 replacement motor.
• Brand new, not rebuilt.
• 2-stage motor design.
• 110-120 volt, 50-60 Hz operation.
• Updated 116336-01 version uses a bearing instead of a cooling-fan bushing.
• Built In Vacuum lists an alternative available: the 119413 motor, which fits in place of the 116336 and can even run alongside it in a two-motor system, though they note the 119413 has about 10% less power.
• Replaces 116757, 116212, 115477, 115757, 115407, 116758, and 115737 motors.
• Carbon motor brushes can be replaced separately; the page says to buy two.

Specifications:

• Brand: Hide-A-Hose / MD / Lamb Ametek.
• Product Name: 116336 Lamb Vacuum Motor.
• SKU / Part Number: 205.
• Product Type: Central vacuum replacement motor.
• Motor Number: 116336.
• Fan Stages: 2.
• Bottom Diameter: 5.7 in.
• Voltage: 110-120 V.
• Hertz: 50-60 Hz.
• Height: 6-1/4 in.
• Bolt Height: 2-5/8 in.
• Waterlift: 84.3 in.
• Airflow: 94 CFM.
• AirWatts: 274.
• Amps: 8.

Compatible With:

• Air-Flo
• AirVac
• Beam
• Central Vac Int.
• Dust Care
• Dynavac
• Fasco
• Filtex
• Imperium
• Modern Day
• Nutone
• SilentMaster
• Star
• ThoroMatic
• Vacuflo
• Vacumaid
• WalVac
•
