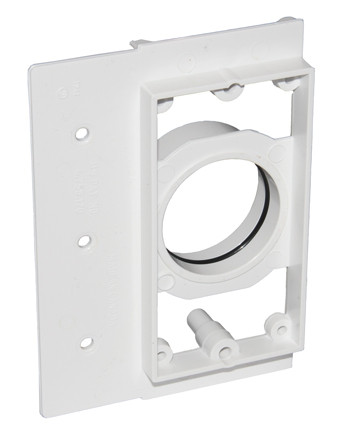

3-in-1 Mounting Bracket PVC

The Hide-A-Hose MD 3-in-1 Mounting Bracket provides a secure mounting point for compatible rectangular basic central vacuum inlet valves. Designed for both new construction and retrofit installations, this versatile PVC backing plate helps properly position and support the inlet valve while providing a connection point for the central vacuum piping. For new construction, the mounting bracket can be nailed or screwed directly to a wall stud before drywall is installed. For existing-wall installations, the stud-mounting flange can be trimmed away and the bracket installed through a 2-3/8 x 4-1/4-inch wall opening. The rear spigot is designed to connect with a compatible central vacuum fitting such as a tight 90-degree elbow or coupling. SKU 517 is intended for standard low-voltage basic inlet installations and does not incorporate a 110/120-volt electrical connection.

Key Features:

• Mounting bracket for basic central vacuum inlet valves
• 3-in-1 design for versatile installation
• Suitable for new construction and retrofit applications
• Durable PVC construction
• Mounts directly to a wall stud in new construction
• Stud-mounting flange can be trimmed for existing-wall installations
• Designed for rectangular basic inlet valve faceplates
• Rear spigot accepts compatible central vacuum fittings
• Compatible with tight 90 elbows and couplings
• Provides a firm mounting surface for the inlet valve
• Works with standard low-voltage central vacuum installations
• No 110/120V electrical connection
• SKU 517

Specifications:

• Brand: Hide-A-Hose MD
• Product: 3-in-1 Mounting Bracket PVC
• SKU: 517
• Product Type: Central Vacuum Inlet Backing / Mounting Plate
• Material: PVC
• Installation Type: New Construction or Retrofit
• Inlet Compatibility: Standard rectangular basic central vacuum inlet valves
• Wall Cutout for Retrofit Installation: 2-3/8 in. x 4-1/4 in.
• Rear Connection: Spigot for compatible central vacuum fitting
• Rear Spigot Outside Diameter: Approximately 2 in.
• Compatible Fittings: Tight 90 elbow, coupling, and other compatible central vacuum fittings
• Stud Mounting: Yes
• Trim-to-Fit for Retrofit Use: Yes
• Electrical Type: Low-voltage inlet installations
• 110/120V Connection: No
• Quantity: 1 Mounting Bracket
