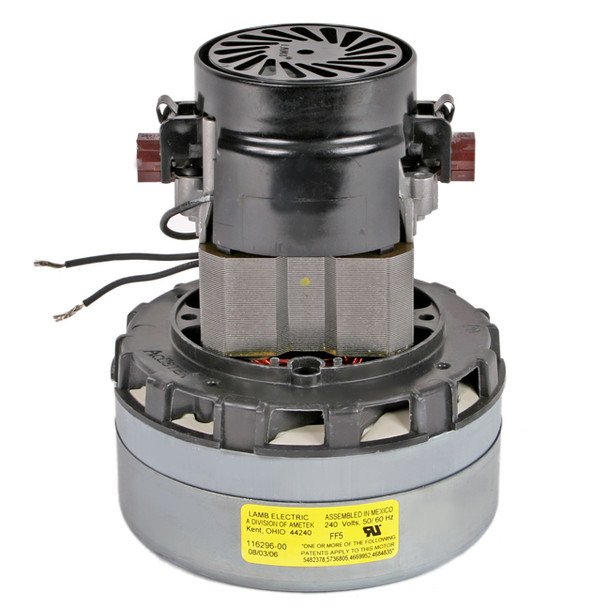

116296 Lamb Vacuum Motor (220-240 volt)

The Hide-A-Hose MD 116296 Lamb Vacuum Motor (220-240 volt) is a brand-new original Lamb Ametek replacement motor used in compatible central vacuum systems and blower applications. Built In Vacuum says this is not rebuilt, and notes that the motor may also be marked 6296 or 11-6296 on the label. It is also compatible with 116296-00 and is a direct replacement for the 116296 motor only.

Key Features:

• Genuine Lamb Ametek 116296 replacement motor.
• Brand new, not rebuilt.
• 2-stage motor design.
• 220-240 volt, 50-60 Hz operation.
• Performance rated at 94.2 inches waterlift, 110.5 CFM, and 349 airwatts.
• Compatible with 116296-00.
• Typical replacement signs include mini breaker popping, electrical smell, excessive blue sparks, clicking without startup, or intermittent shutdown after long use.
• Carbon motor brushes can be replaced separately, and the page notes you need two if replacing them.

Specifications:

• Brand: Hide-A-Hose / MD / Lamb Ametek.
• Product Name: 116296 Lamb Vacuum Motor (220-240 volt).
• SKU / Part Number: 202A.
• Product Type: Central vacuum replacement motor.
• Motor Number: 116296.
• Fan Stages: 2.
• Bottom Diameter: 5.7 in.
• Voltage: 220-240 V.
• Hertz: 50-60 Hz.
• Height: 7 in.
• Bolt Height: 2-3/4 in.
• Waterlift: 94.2 in.
• Airflow: 110.5 CFM.
• AirWatts: 349.
• Amps: 4.4.
• Replacement Note: Replaces 116296 motor only.

Compatible With:

• Beam
• Dust Care
• Modern Day
• SilentMaster
• •
