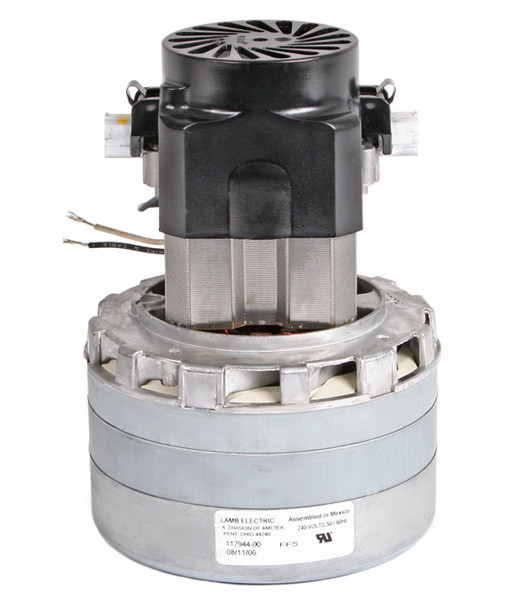

117944 Lamb Motor (S4,S5 - 240 volt)

The Hide-A-Hose MD 117944 Lamb Motor (S4,S5 - 240 volt) is a brand-new original Lamb Ametek replacement motor used in compatible central vacuum systems and blower applications. Built In Vacuum says this is not rebuilt, and notes that it is used in some central vacuum brands and models. It is a direct replacement for the 117944 motor only.

Key Features:

• Genuine Lamb Ametek 117944 replacement motor.
• Brand new, not rebuilt.
• 3-stage motor design.
• 220–240 volt, 50–60 Hz operation.
• Performance rated at 138.1 inches waterlift, 100.3 CFM, and 444 airwatts.
• Typical replacement signs include mini breaker popping, electrical smell, excessive blue sparks, clicking without startup, or intermittent shutdown after long use.
• Carbon motor brushes can be replaced separately, and you need two brushes if replacing them.

Specifications:

• Brand: Hide-A-Hose / MD / Lamb Ametek.
• Product Name: 117944 Lamb Motor (S4,S5 - 240 volt).
• SKU / Part Number: 199RX.
• Product Type: Central vacuum replacement motor.
• Motor Number: 117944.
• Fan Stages: 3.
• Bottom Diameter: 5.7 in.
• Voltage: 220–240 V.
• Hertz: 50–60 Hz.
• Height: 8 in.
• Bolt Height: 3.5 in.
• Waterlift: 138.1 in.
• Airflow: 100.3 CFM.
• AirWatts: 444.
• Amps: 6.7.
• Replacement Note: Replaces 117944 only.

Compatible With:

• AirMaster
• Modern Day
• SilentMaster
• •
