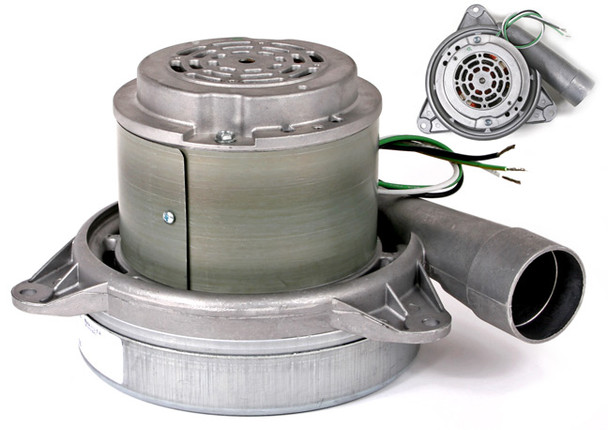

115684 Lamb Vacuum Motor

The Hide-A-Hose MD 115684 Lamb Vacuum Motor is a brand-new original Lamb Ametek replacement motor used in some compatible central vacuum systems and blower applications. Built In Vacuum says it is not rebuilt and notes that this motor is the 240-volt version of the 115334. It is also described as the all-metal version of the 117465 motor.

Key Features:

• Genuine Lamb Ametek 115684 replacement motor.
• Brand new, not rebuilt.
• 2-stage motor design.
• 220–240 volt, 50–60 Hz operation.
• Performance rated at 110 inches waterlift, 97.8 CFM, and 338 airwatts.
• Described as the 240-volt version of 115334.
• Described as the all-metal version of 117465.
• Replaces 116717 and 117157 in matching applications.
• Compatible with applications such as Vacumaid P125 and P325 through the linked 115334 motor family reference.

Specifications:

• Brand: Hide-A-Hose / MD / Lamb Ametek.
• Product Name: 115684 Lamb Vacuum Motor.
• SKU / Part Number: 208.
• Product Type: Central vacuum replacement motor.
• Motor Number: 115684.
• Fan Stages: 2.
• Bottom Diameter: 7.2 in.
• Voltage: 220–240 V.
• Hertz: 50–60 Hz.
• Height: 6 in.
• Bolt Height: 1.5 in.
• Waterlift: 110 in.
• Airflow: 97.8 CFM.
• AirWatts: 338.
• Amps: 5.5.

Compatible With:

• AirMaster
• AstroVac
• Flo-Master
•
