Washer - Bearing - Idler Shaft Assembly

The Hide-A-Hose MD Washer–Bearing–Idler Shaft Assembly is a replacement drive component set for compatible TurboCat air-driven central vacuum powerheads. This assembly includes the D-washer, needle bearing, and idler shaft needed to support the powerhead’s belt-drive system. It is a practical replacement when the original components are worn, damaged, missing, or causing improper belt operation.

Key Features:

• Genuine MD / Hide-A-Hose compatible replacement assembly
• Includes the D-washer, needle bearing, and idler shaft
• Combines three formerly separate components into one product
• Supports proper belt positioning and movement
• Fits TurboCat, TL2000, TP210, and T210 models
• Replaces alternate part numbers 7231, 7234, and 7233

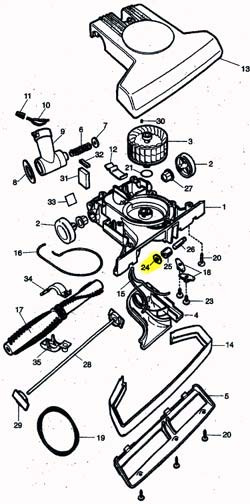

• Corresponds to items #24, #25, and #26 on the exploded diagram
• Belt and other powerhead components not included

Specifications:

• Brand: Hide-A-Hose MD
• SKU / Part Number: 45525A
• Alternate Part Numbers: 7231, 7234, 7233
• Product Type: Washer, bearing, and idler shaft assembly
• Application: TurboCat air-driven powerhead belt-drive repair
• Compatible Models: TurboCat, TL2000, TP210, T210
• Diagram References: Items #24, #25, and #26
• Included Components: D-washer, needle bearing, and idler shaft
• Belt Installation Note: The belt crosses over itself and passes above the assembly
• Belt Included: No
