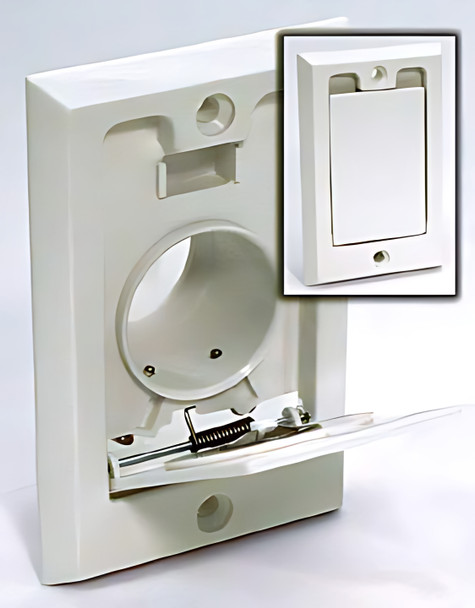

Square Door Basic Wall Central Vacuum Inlet

The Hide-A-Hose MD Square Door Basic Wall Central Vacuum Inlet provides a clean, dependable connection point for a standard central vacuum hose. Designed for low-voltage central vacuum systems, the inlet uses internal contact points to activate the central vacuum power unit when a compatible hose is inserted. SKU 652HW is the White version of the Square Door Basic Inlet and measures 3-1/8 inches wide by 4-7/8 inches high. It replaces Hayden HM-1700 / 1700 style inlet valves and is compatible with many standard central vacuum installations.

Key Features:

• Basic wall inlet for central vacuum systems
• Square-door design
• White finish
• Durable PVC construction
• Low-voltage central vacuum activation
• Two internal metal contact points activate the vacuum system
• Two rear screw terminals for low-voltage wiring
• Compatible with standard central vacuum hoses
• Can be installed with the door opening up or down in most applications
• Ideal for replacing worn or damaged inlet valves
• Replaces Hayden HM-1700 / 1700 style inlets
• Compatible with many common central vacuum systems
• Low-voltage only
• Does not contain a 110/120V electrical hose connection
• SKU 652HW

Specifications:

• Brand: Hide-A-Hose MD
• Product: Square Door Basic Wall Central Vacuum Inlet
• SKU: 652HW
• Product Type: Central Vacuum Wall Inlet
• Style: Square Door
• Color: White
• Material: PVC
• Voltage Type: Low Voltage Only
• 110/120V Connection: No
• System Activation: Internal low-voltage contact points
• Low-Voltage Connections: Two rear screw terminals
• Outer Dimensions: 3-1/8 in. x 4-7/8 in.
• Replacement For: Hayden HM-1700 / 1700
• Installation Orientation: Door can typically open upward or downward
• Application: Central vacuum installation and replacement
• Quantity: 1 Inlet Valve
