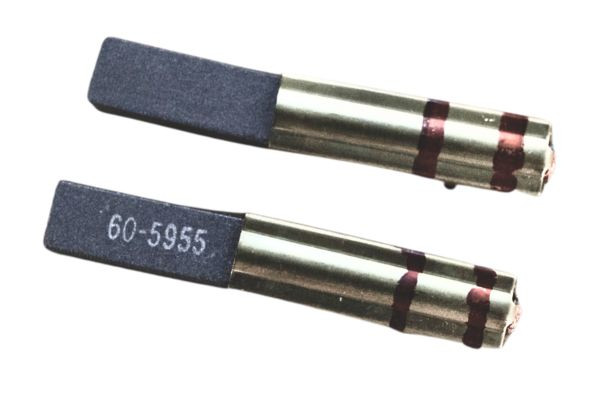

Motor Brush Kit (122556-00)

The Hide-A-Hose MD Motor Brush Kit (122556-00) is a replacement carbon brush kit for the Lamb Ametek 122556-00 vacuum motor. Built In Vacuum lists it specifically for 122556-00 and notes that motor brushes should be checked every couple of years and replaced when the carbon wears down to about 3/16 inch. Unlike many single-brush listings, this item is identified as a brush kit, which indicates a pair for one motor service.

Key Features:

• Replacement motor brush kit for Lamb Ametek 122556-00 motors.
• Built In Vacuum’s review page identifies the item as Motor Brush Kit (122556-00).
• Third-party cross-reference confirms it fits Lamb Ametek 122556 motors.
• Sold as a kit, which aligns with a complete two-brush service set for one motor.
• Recommended replacement point is about 3/16 inch remaining carbon.
• Built In Vacuum’s brush category guidance says worn brushes that have already damaged the commutator/armature usually mean the motor should be replaced instead of just the brushes.
• Built In Vacuum also notes generally that 120V and 240V brushes are not interchangeable.

Specifications:

• Brand: Hide-A-Hose / MD. This is the site brand context for the listed part.
• Product Name: Motor Brush Kit (122556-00).
• SKU / Part Number: 211CX.
• Product Type: Replacement motor brush kit / carbon brush kit.
• Compatibility: Lamb Ametek 122556-00 vacuum motor.
• Quantity Per Package: 2 brushes / one kit. This is supported by the “kit” naming and the cross-reference page stating “price is for a two brush kit.”
• Quantity Required Per Motor: 2 brushes.
