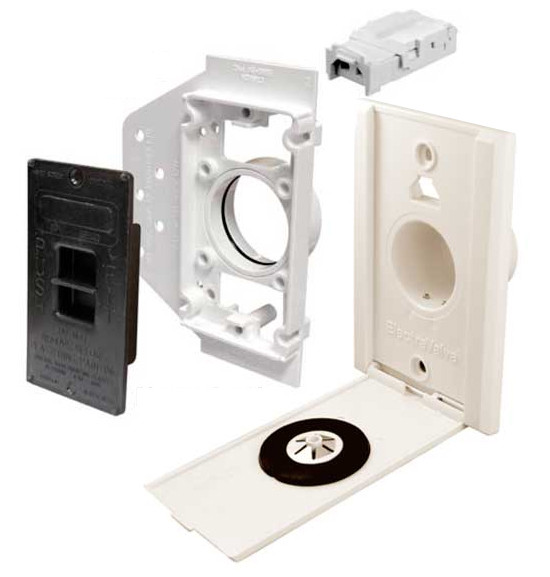

Canplas E-Box ElectraValve Connection and Face Plate

The Hide-A-Hose MD Canplas E-Box ElectraValve Connection and Face Plate provides an electrified wall inlet for central vacuum systems using compatible direct-connect electric hoses. The ElectraValve combines the central vacuum hose connection, low-voltage system control, and 110/120-volt power needed to operate an electric powerhead without requiring a separate hose cord plugged into a nearby electrical outlet. The newer Canplas E-Box design simplifies high-voltage wiring by allowing standard 12- or 14-gauge household wire to connect directly to the E-Box connector. The connector then snaps securely into the back of the ElectraValve inlet. SKU 663CEKA features an Almond faceplate and includes the components needed for the E-Box ElectraValve connection and inlet installation. It is especially useful for new installations or upgrading older ElectraValve systems to the current E-Box design.

Key Features:

• Canplas/Vaculine E-Box ElectraValve central vacuum inlet
• Almond finish
• Supports compatible direct-connect electric central vacuum hoses
• Provides 110/120V power for compatible electric powerheads
• Built-in low-voltage contacts control the central vacuum power unit
• Eliminates the need for a separate hose power cord to a nearby outlet
• E-Box connector accepts standard 12- or 14-gauge electrical wire
• No factory-attached Romex pigtail required
• E-Box connector snaps securely into the rear of the inlet
• Two screw terminals for central vacuum low-voltage wiring
• Suitable for new installations and compatible retrofit applications
• Current-generation replacement for discontinued older ElectraValve design
• Manufactured by Canplas/Vaculine
• Canplas ElectraValve series 775850
• Almond configuration corresponds to Canplas 775850A
• SKU 663CEKA

Specifications:

• Brand: Hide-A-Hose MD / Canplas Vaculine
• Product: E-Box ElectraValve Connection and Face Plate
• SKU: 663CEKA
• Canplas Inlet Reference: 775850A
• Product Type: Electrified Central Vacuum Wall Inlet Kit
• Inlet Style: E-Box ElectraValve
• Color: Almond
• High-Voltage Connection: 110/120V
• Low-Voltage Connection: Yes
• Electrical Wire Compatibility: 12 or 14 gauge
• Low-Voltage Wiring: Two rear screw terminals
• High-Voltage Connection: Snap-in E-Box connector
• Hose Compatibility: Compatible direct-connect electric central vacuum hoses
• Electric Powerhead Support: Yes
• Faceplate Length: Approximately 5.25 in.
• Faceplate Width: Approximately 3.5 in.
• Faceplate Depth: Approximately 1.8 in.
• Application: New installation or upgrade of compatible ElectraValve installations
• Older ElectraValve Electrical Connector Compatibility: No; older molded electrical plug must be replaced with the newer E-Box connection
• Quantity: 1 Kit
