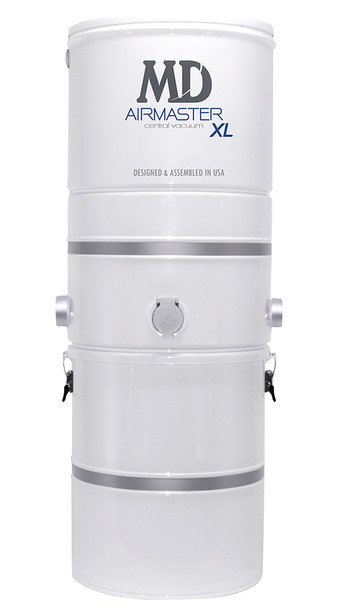

AirMaster XL A850hQ 120 Volt

IMPORTANT! Electrical: 120V 50/60HZ, 30 amp circuit. Separate circuit recommended. 6’ Cord with typical 120v plug. Fits NEMA 5-30R receptacle.

The Hide-A-Hose MD AirMaster XL A850hQ 120 Volt central vacuum power unit is a high-performance tall-can system built for large high-altitude homes and demanding Hide-A-Hose installations. It uses dual 3-stage 5.7 inch motors in series to produce extremely high water lift, while the 8-gallon Tru-Seal closed bag filtration system helps provide cleaner dirt disposal and dependable whole-home performance. MD specifically notes this model is intended for large high-altitude homes with Hide-A-Hose requirements.

Key Features:

• 120 volt central vacuum power unit
• Dual 3-stage 5.7 inch motors in series
• 719 air watts
• 90.0 CFM airflow
• 224.0 inches water lift
• Quiet 68 dB operation
• 8-gallon Tru-Seal closed bag filtration
• Filtered exhaust
• Utility valve
• Right and left intake valves
• Covers up to 20,000 sq. ft.
• Designed and assembled in the USA
• Durable 20-gauge steel body and lid with powder-coated finish
• Special high-water-lift design for large high-altitude Hide-A-Hose application

Specifications:

• Brand: Hide-A-Hose / MD Manufacturing / AirMaster XL
• Model: A850hQ
• SKU / Part Number: A1260NH
• Voltage: 120V
• Max Amps: 26.0
• Air Watts: 719
• Airflow: 90.0 CFM
• Water Lift: 224.0 in.
• Motor: Dual 3-stage 5.7 in. motors in series
• Noise Level: 68 dB
• Filtration: 8-gallon Tru-Seal closed bag system
• Intake Valves: Right and left intakes
• Utility Valve: Yes
• Exhaust: Filtered exhaust
• Recommended Coverage: Up to 20,000 sq. ft.
• Height: 39.5 in.
• Diameter: 14.75 in.
• Electrical Note: Requires a dedicated 120-volt 30-amp circuit using 10-gauge wire and a NEMA 5-30 receptacle
