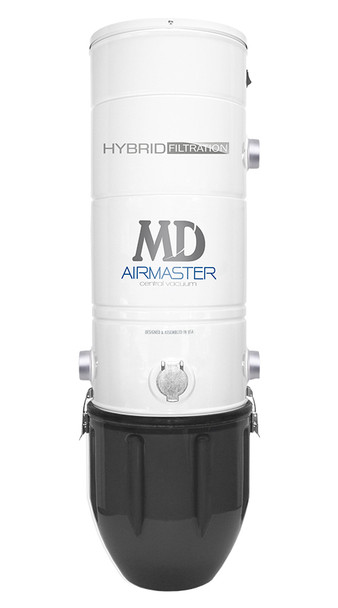

AirMaster A650tv 120 Volt

IMPORTANT! Electrical: 120V 50/60HZ, 20 amp circuit. Separate circuit recommended. 6’ Cord with standard plug fits
NEMA 5-20R receptacle.

The Hide-A-Hose MD AirMaster A650tv 120 Volt central vacuum power unit is a tall-can, bagged system designed for dependable whole-home cleaning in homes up to about 8,000 square feet. It uses a single 2-stage 5.7 inch thru-flow motor to deliver a strong balance of airflow and water lift, while the Microtex inverted cloth and Tru-Seal closed bag filtration system helps provide cleaner dirt disposal and reduced filter maintenance. Its filtered exhaust, dual intake valves, quiet operation, and durable steel construction make it a practical option for many residential central vacuum installations.

Key Features:

• 120 volt central vacuum power unit
• Single 2-stage 5.7 inch thru-flow motor
• 650 air watts
• 130.2 CFM airflow
• 143.1 inches water lift
• Quiet 60 dB operation
• Microtex inverted cloth and Tru-Seal closed bag filtration
• 5 gallon dirt capacity
• Right and left intake valves
• Filtered exhaust
• Tall-can design
• Recommended coverage up to 8,000 sq. ft.
• Designed and assembled in the USA with durable steel construction and powder-coated finish.

Specifications:

• Brand: Hide-A-Hose / MD Manufacturing / AirMaster
• Model: A650tv
• SKU / Part Number: A1156AJ
• Voltage: 120V
• Max Amps: 15.0
• Air Watts: 650
• Airflow: 130.2 CFM
• Water Lift: 143.1 in.
• Motor: Single 2-stage 5.7 in. thru-flow motor
• Noise Level: 60 dB
• Filtration: Microtex inverted cloth and Tru-Seal closed bag filtration
• Capacity: 5 gallon
• Intake Valves: Right and left intakes
• Exhaust: Filtered exhaust
• Recommended Coverage: Up to 8,000 sq. ft.
• Height: 39.5 in.
• Diameter: 12 in. can
• Electrical Note: 120V, 50/60Hz, 20 amp circuit recommended; 6 ft. cord fits a NEMA 5-20R receptacle.
