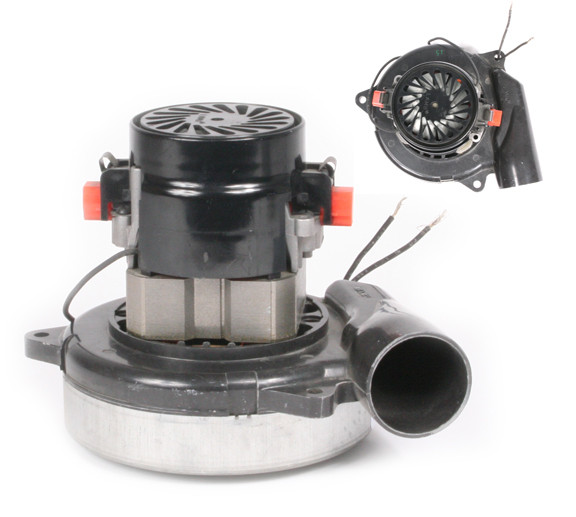

119512 Lamb Vacuum Motor

The Hide-A-Hose MD 119512 Lamb Vacuum Motor is a brand-new original Lamb Ametek replacement motor used in compatible central vacuum systems and blower applications. Built In Vacuum says this is not rebuilt, and notes that the motor may also be marked 9512 or 11-9512 on the label. It uses a tangential bypass design and is a direct replacement for the 119512 motor only.

Key Features:

• Genuine Lamb Ametek 119512 replacement motor.
• Brand new, not rebuilt.
• 1-stage motor design.
• 110-120 volt, 50-60 Hz operation.
• Performance rated at 87.5 inches waterlift, 138.3 CFM, and 418 airwatts.
• Uses tangential bypass airflow design.
• Typical motor life is listed at about 900–1,200 hours.
• Direct replacement for 119512 only.
• Carbon brush replacement support exists for 119512 through the matching motor brush listing.

Specifications:

• Brand: Hide-A-Hose / MD / Lamb Ametek.
• Product Name: 119512 Lamb Vacuum Motor.
• SKU / Part Number: 209-1.
• Product Type: Central vacuum replacement motor.
• Motor Number: 119512.
• Fan Stages: 1.
• Bottom Diameter: 5.7 in.
• Voltage: 110-120 V.
• Hertz: 50-60 Hz.
• Height: 6-3/4 in.
• Bolt Height: 1-1/4 in.
• Waterlift: 87.5 in.
• Airflow: 138.3 CFM.
• AirWatts: 418.
• Amps: 11.2.
• Replacement Note: Replaces 119512 only
