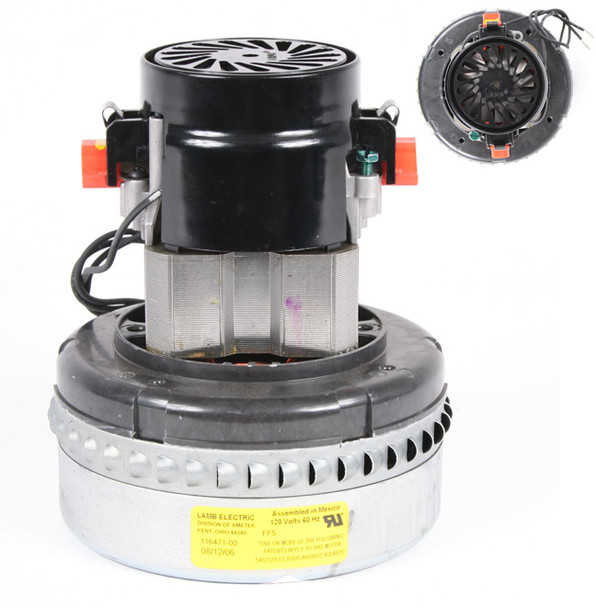

116471 Lamb Central Vacuum Motor

The Hide-A-Hose MD 116471 Lamb Central Vacuum Motor is a brand-new original Lamb Ametek replacement motor used in compatible central vacuum systems and blower applications. Built In Vacuum says this is not rebuilt, and notes that it is found in a few central vacuum brands and models. It is a direct replacement for the 116471 motor only.

Key Features:

• Genuine Lamb Ametek 116471 replacement motor.
• Brand new, not rebuilt.
• 2-stage motor design.
• 110–120 volt, 50–60 Hz operation.
• Performance rated at 106.7 inches waterlift, 112 CFM, and 404 airwatts.
• Higher-performance alternative to 119413, with higher CFM and waterlift, though the page notes a shorter life and limited warranty because it spins faster.
• Carbon motor brushes can be replaced separately.

Specifications:

• Brand: Hide-A-Hose / MD / Lamb Ametek.
• Product Name: 116471 Lamb Central Vacuum Motor.
• SKU / Part Number: 209P.
• Product Type: Central vacuum replacement motor.
• Motor Number: 116471.
• Fan Stages: 2.
• Bottom Diameter: 5.7 in.
• Voltage: 110–120 V.
• Hertz: 50–60 Hz.
• Height: 6.75 in.
• Bolt Height: 2 in.
• Waterlift: 106.7 in.
• Airflow: 112 CFM.
• AirWatts: 404.
• Amps: 10.7.
• Replacement Note: Replaces none; direct replacement for 116471 only.

Compatible With:

• AirVac
• Dust Care
• Vacuflo
• •
