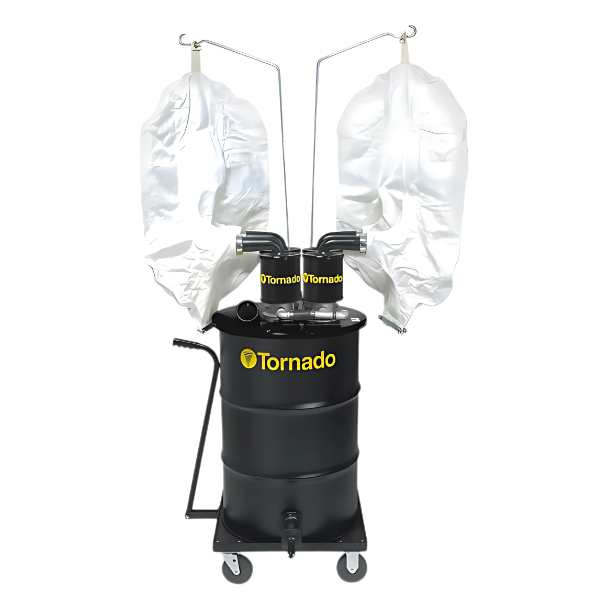

Tornado External Quad Filter Wet-Dry Jumbo Air Vacuum

The Tornado External Quad Filter Wet/Dry Jumbo Air Vacuum is a powerful, compressed-air-powered system designed for rapid, high-volume recovery of wet and dry debris in industrial settings. It is one of the most powerful portable vacuums available and is specifically intended for large manufacturing facilities and heavy industrial plants that can meet its compressed air requirements. The unit can recover both wet and dry materials without needing to stop and change or clean an internal filter, minimizing downtime and eliminating operator guesswork.

Key Features:

• Compressed Air Powered: Creates substantial waterlift beyond traditional wet/dry vacuums for maximum performance.
• Simultaneous Wet and Dry Recovery: Capable of picking up both wet and dry materials without filter changes.
• Industrial Applications: Designed for extremely aggressive pick-up power and suitable for challenges like water, oil, solvent, slurries, sludge, heavy oils, iron dust, chips, sandblasting recovery, pellet recovery, shot blast, slag, and scale.
• High Capacity: Features a 55-gallon steel drum for bulk recovery.
• External Filters: Comes standard with large external filters and support rods.
• Rugged Construction: The 55-gallon, rolled-top, ribbed steel drum is superior to plastic or stainless steel tanks for heavy-duty applications and includes an industrial gate valve for easy liquid emptying.
• Mobile: Sits on a four-wheel steel dolly for easy transport.
• Venturi Powerheads: Utilizes patented Venturi powerheads that generate powerful waterlift.
• Liquid Shut-Off Floats: Liquid shut-off floats come standard with the Quad Air Jumbo.


Specifications:

• Model: Quad Air Jumbo Vacuum
• Catalog Number: 98451
• Venturi Powerheads/CFM: Four/258
• Waterlift: 200"
• Steel Tank: 55 Gallon
• Vertical Lift/Horizontal Reach: 50/100
• Poly External Filters: Two
• Filter Area: 3748 sq. in.
• Warranty: 1 year (labor), 2 years (parts)
• Standard Replacement Component Parts:

• • 55-Gallon Drum: 95942

  • Large Poly Filter: 90488 (2 Req.)

  • Support Rod: 98049 (2)

  • 4-Wheel Dolly: 98088

  • Adapter: 90332 (2")

• Required for Operation (Not available from Tornado):

  • Minimum Recommended Air Compressor: 50 HP

  • Recommended Airline: 1" Diameter

  • Recommended Line Couplings: Straight-Thru

  • Required Air Line PSI for General Wet/Dry Recovery: 50-75 psi

  • Required Air Line PSI for Maximum Pick-up Power: 75-100 psi

• Standard Air Jet: Shipped with a 1/4" jet installed in the Venturi powerhead; 3/16" and 7/32" jets are also supplied
