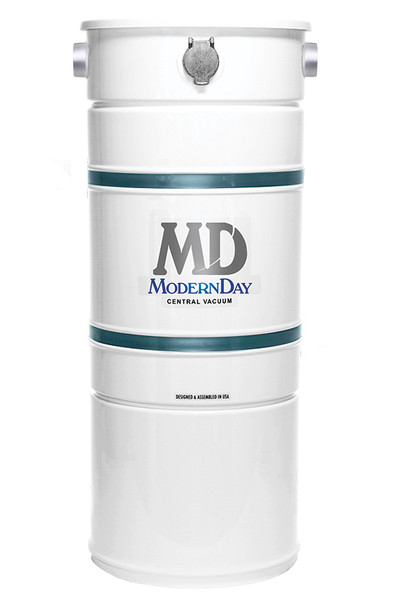

ModernDay M850h 120 Volt

IMPORTANT! Electrical: 120V - 50/60HZ, 30 amp circuit. Separate circuit recommended. 6’ Cord with large NEMA 5-30R receptacle.

The Hide-A-Hose MD ModernDay M850h 120 Volt central vacuum power unit is a high-performance bagged system built for large homes, especially higher-altitude applications using Hide-A-Hose. It uses dual 2-stage 5.7 inch bypass motors to deliver strong airflow and high water lift, while the Tru-Seal closed bag filtration system helps provide cleaner dirt disposal and fine dust containment. This model is specifically noted by the manufacturer as being intended for large high-altitude homes with Hide-A-Hose requirements.

Key Features:

• 120 volt central vacuum power unit
• Dual 2-stage 5.7 inch bypass motors
• 804 air watts
• 147.7 CFM airflow
• 183.9 inches water lift
• Tru-Seal closed bag filtration system
• Filtered exhaust
• Dual intake valves
• Utility valve
• Designed for homes up to 20,000 sq. ft.
• 68 dB noise level
• Special 120V 30-amp circuit requirement with 10-gauge wire and NEMA 5-30 receptacle
• Intended for large high-altitude Hide-A-Hose applications.

Specifications:

• Brand: Hide-A-Hose / MD Manufacturing / ModernDay
• Model: M850h
• SKU / Part Number: M1260NH
• Voltage: 120V
• Max Amps: 26.0
• Air Watts: 804
• Airflow: 147.7 CFM
• Water Lift: 183.9 in.
• Motor: Dual 2-stage 5.7 in. bypass motors
• Noise Level: 68 dB
• Filtration: Tru-Seal closed bag system
• Capacity: 8 gallon
• Intake Valves: Dual intake valves
• Utility Valve: Yes
• Exhaust: Filtered exhaust
• Recommended Coverage: Up to 20,000 sq. ft.
• Height: 36 in.
• Diameter: 14 in.
• Weight: 49 lb.
