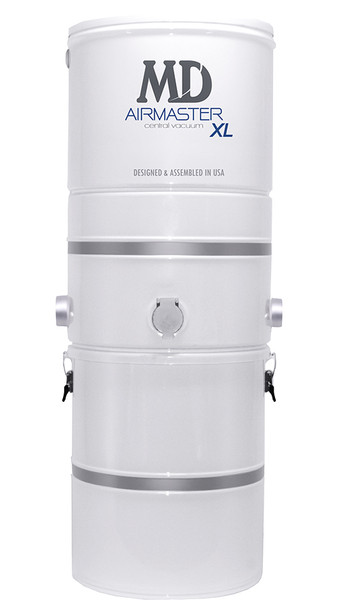

AirMaster XL A850h2Q 240 Volt

IMPORTANT! Electrical: 240V 50/60HZ, 15 amp circuit. Separate circuit recommended. 6’ Cord with typical 120v plug. Fits NEMA 6-20R receptacle.

The Hide-A-Hose MD AirMaster XL A850h2Q 240 Volt central vacuum power unit is a high-performance tall-can system built for large homes and demanding Hide-A-Hose installations. It uses a high-water-lift motor configuration and an 8-gallon Tru-Seal closed bag system to deliver strong suction with cleaner dirt disposal and dependable whole-home performance. MD positions this model for homes up to 20,000 square feet where long pipe runs and stronger lift are important.

Key Features:

• 240 volt central vacuum power unit
• Covers up to 20,000 sq. ft.
• 850 air watts
• 92.0 CFM airflow
• 257.0 inches water lift
• Quiet 68 dB operation
• 8-gallon Tru-Seal closed bag filtration
• Filtered exhaust
• Utility valve
• Right and left intake valves
• Durable 20-gauge steel body and lid
• Powder-coated interior and exterior for rust and chip resistance
• Designed and assembled in the USA

Specifications:

• Brand: Hide-A-Hose / MD Manufacturing / AirMaster XL
• Model: A850h2Q
• SKU / Part Number: A2260NH
• Voltage: 240V
• Max Amps: 14.4
• Air Watts: 850
• Airflow: 92.0 CFM
• Water Lift: 257.0 in.
• Motor: Product page lists single 3-stage 5.7 inch by-pass motor
• Noise Level: 68 dB
• Filtration: Tru-Seal closed bag system
• Capacity: 8 gallon
• Intake Valves: Right and left intakes
• Utility Valve: Yes
• Exhaust: Filtered exhaust
• Recommended Coverage: Up to 20,000 sq. ft.
• Height: 39.5 in.
• Diameter: 14.75 in.
• Electrical Note: 240V, 50/60Hz, 15 amp circuit; separate circuit recommended; fits NEMA 6-20R receptacle
• Includes: Muffler and venting pipe
