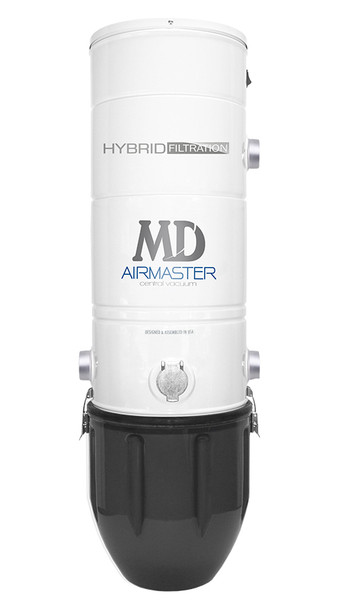

AirMaster A700tv2 240 Volt

IMPORTANT! Electrical: 240V 50/60HZ, 15 amp circuit. Separate circuit recommended. 6’ Cord with typical 240v plug.
Fits NEMA 6-20R receptacle.

The Hide-A-Hose MD AirMaster A700tv2 240 Volt central vacuum power unit is a tall-can, bagged system designed for dependable whole-home cleaning in homes up to about 10,000 square feet. It uses a single 2-stage 5.7 inch thru-flow motor to deliver strong airflow and solid suction, while the Microtex inverted cloth and Tru-Seal closed bag filtration system helps provide cleaner dirt disposal and reduced filter maintenance. Its filtered exhaust, dual intake valves, quiet operation, and durable steel construction make it a practical option for many residential central vacuum installations.

Key Features:

• 240 volt central vacuum power unit
• Single 2-stage 5.7 inch thru-flow motor
• 700 air watts
• 133.0 CFM airflow
• 145.9 inches water lift
• Quiet 62 dB operation
• 5-gallon Microtex inverted cloth and Tru-Seal closed bag filtration
• Filtered exhaust
• Right and left intake valves
• Tall-can design
• Recommended coverage up to 10,000 sq. ft.
• Designed and assembled in the USA
• Durable 20-gauge steel body and lid with powder-coated finish.

Specifications:

• Brand: Hide-A-Hose / MD Manufacturing / AirMaster
• Model: A700tv2
• SKU / Part Number: A215DAJ
• Voltage: 240V
• Max Amps: 7.6
• Air Watts: 700
• Airflow: 133.0 CFM
• Water Lift: 145.9 in.
• Motor: Single 2-stage 5.7 in. thru-flow motor
• Noise Level: 62 dB
• Filtration: 5-gallon Microtex inverted cloth and Tru-Seal closed bag filtration
• Intake Valves: Right and left intakes
• Exhaust: Filtered exhaust
• Recommended Coverage: Up to 10,000 sq. ft.
• Height: 39.5 in.
• Diameter: 12 in.
